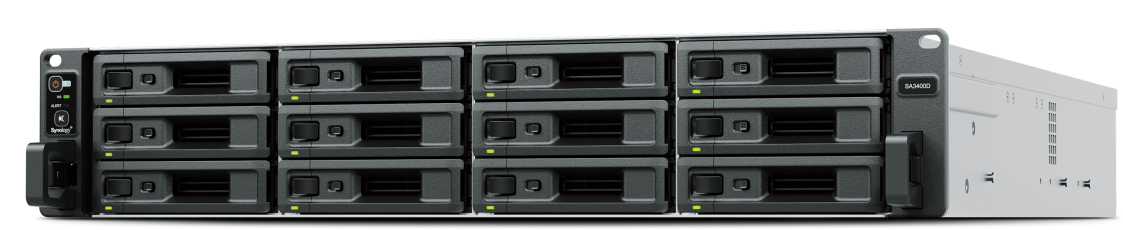

SA3400D
Keep services online with efficient high-availability storage
Accessible and convenient
Maintain data availability with an active-passive high availability dual-controller module
Versatile applications
Manage, distribute, and protect data, back up endpoints, and guard physical premises
Fast and efficient
Over 3,500/2,900 MB/s seq. read/write throughput1 and over 500 TB maximum storage capacity2
Built-in High Availability
Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.
Made for demanding environments
The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.
Consolidate your data infrastructure

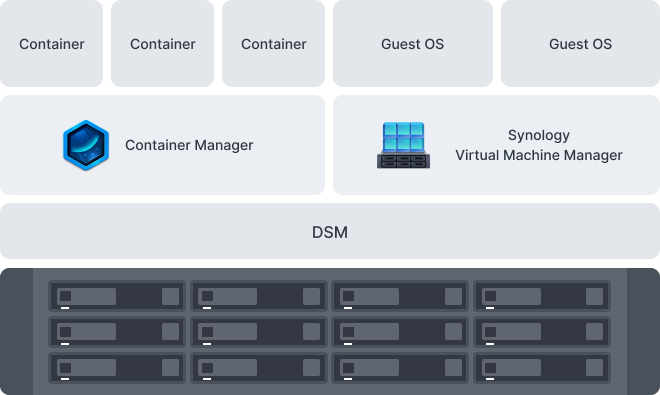

Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.

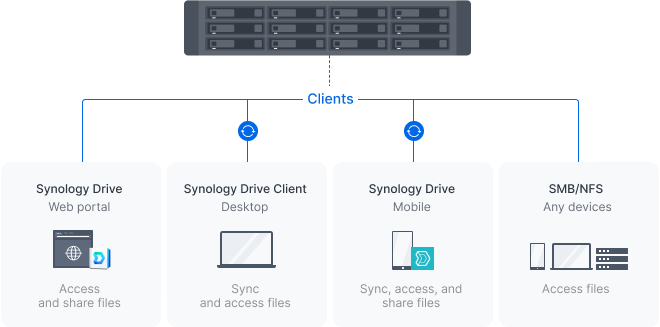

Private cloud management

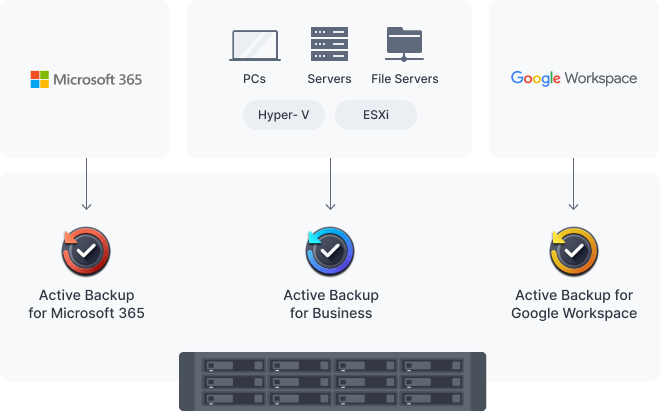

Built-in data protection
Business productivity solutions
Flexible options to meet changing needs
Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.6
Add storage capacity on demand
Scale server capacity up to 576 TB7 when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.
Boost network and I/O performance
Add 10/25GbE connectivity with optional add-in cards.8 Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.9
Performance backed by Synology drives
Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.
Synology has you covered
The SA3400D is backed by Synology's 5-year limited warranty,10 including technical support and hardware replacement services to maximize your return on investment and ensure continuous, high-quality performance. Learn more
Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity. Learn more
Hardware Overview
- 1Power Button and Indicator
- 2High Availability Status Indicator
- 3Alert Indicator
- 4Mute Button
- 5Drive Status Indicators
- 6Drive Trays
- 7Rail Kit Release Tabs
- 8Power Ports
- 9PSU Indicators
- 10PSU Fans
- 11PCI Express Expansion Slots
- 12Console Ports
- 131GbE RJ-45 Ports
- 1410GbE RJ-45 Ports
- 15Expansion Ports
- 16Reset Buttons
- 17Remove Indicators
- 18Alert Indicators
- 19Status Indicators
- 20Power Indicators
Notes:
Performance figures are obtained through internal testing by Synology. Actual performance may vary depending on the testing environment, usage, and configuration. See performance charts for more information.
Volumes up to 108 TB are supported with the default installed memory. Volumes up to 200 TB can be created if the memory is upgraded to 32 GB. Learn more about maximum volume sizes.
C2 Storage for Hyper Backup and Hybrid Share requires purchase of an annual or monthly subscription. A free trial is available for each newly registered device.
Five MailPlus email accounts are included. Additional email accounts can be added with the purchase of Synology MailPlus License Packs. Learn more
Certain advanced features require Virtual Machine Manager Pro. One Virtual DSM license is included. Additional Virtual DSM instances require the purchase of Virtual DSM Licenses.
Please refer to the SA3400D compatibility list for the latest optional accessories lists.
The SA3400D supports up to 36 drives with two Synology RXD1219sas expansion units, sold separately.
For the most up-to-date list of compatible NICs and HBAs, please check our compatibility list.
SSD cache volumes store frequently accessed data from conventional HDD volumes to reduce I/O latency and improve system performance. To find out which SAS SSDs are supported, please check our compatibility list.
The warranty period starts from the date of purchase as stated on your purchase receipt. Learn more about our limited product warranty policy.
Hardware Specifications |
||
---|---|---|
Controller |
||
Controller
|
Number of Controller Module | 2 |
CPU |
||
CPU
|
CPU Model | Intel Xeon D-1541 |
CPU Quantity | 1 (per controller) | |
CPU Core | 8 | |
CPU Architecture | 64-bit | |
CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz | |
Hardware Encryption Engine | ||
Memory |
||
Memory
|
System Memory | 8 GB DDR4 ECC UDIMM (per controller) |
Memory Module Pre-installed | 8 GB (8 GB x 1) (per controller) | |
Total Memory Slots | 4 (per controller) | |
Maximum Memory Capacity | 64 GB (16 GB x 4) (per controller) | |
Notes |
|
|
Storage |
||
Storage
|
Drive Bays | 12 |
Maximum Drive Bays with Expansion Unit | 36 (RXD1219sas x 2) | |
Compatible Drive Type* (See all supported drives) |
|
|
Hot Swappable Drive* | ||
Notes |
|
|
External Ports |
||
External Ports
|
RJ-45 1GbE LAN Port | 2 (per controller) |
RJ-45 10GbE LAN Port | 1 (per controller) | |
Expansion Port | 1 (per controller) | |
Expansion Port Type | Mini-SAS HD | |
Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
PCIe |
||
PCIe
|
PCIe Expansion | 1 x Gen3 x8 slot (x8 link) (per controller) |
Appearance |
||
Appearance
|
Form Factor (RU) | 2U |
Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
Weight | 19.7 kg | |
Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
Notes | The rail kit is sold separately | |
Others |
||
Others
|
System Fan | 60 mm x 60 mm x 2 pcs |
Fan Speed Mode |
|
|
Easy Replacement System Fan | ||
Power Recovery | ||
Noise Level* | 51.3 dB(A) | |
Power Supply Unit / Adapter | 500 watts | |
Redundant Power Supply | ||
AC Input Power Voltage | 100V to 240V AC | |
Power Frequency | 50/60 Hz, Single Phase | |
Power Consumption |
257.78 watts (Access) |
|
British Thermal Unit |
879.58 BTU/hr (Access) |
|
Notes |
|
|
Temperature |
||
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
Relative Humidity | 5% to 95% RH | |
Certification |
||
Certification
|
|
|
Warranty |
||
Warranty
|
5 Years | |
Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment |
||
Environment
|
RoHS Compliant | |
Packaging Content |
||
Packaging Content
|
|
|
Optional Accessories |
||
Optional Accessories
|
|
|
Notes | Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations. |
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
