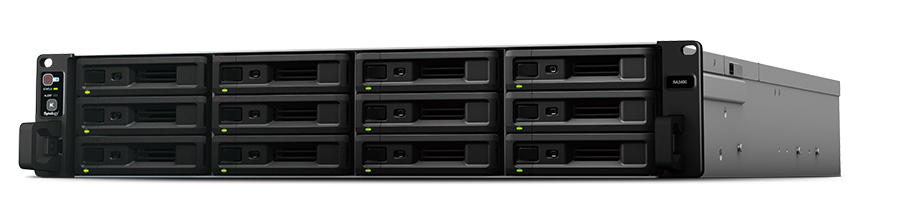

SA3400

Highly scalable NAS meeting extensive data storage needs

Highly scalable storage with uncompromising performance

Equipped with an 8-core CPU and 16GB ECC RDIMM memory, SA3400 delivers sequential throughput at over 5,520 MB/s and 304,277 random IOPS1. Built-in 10GbE Ethernet, PCIe expansions, and the support for both SAS and SATA drives provide resilient configurability with fast data transmission, fulfilling modern enterprises' needs for excellent performance and massive storage scalability simultaneously.

Download Datasheet

CPU

Intel® Xeon® D-1541 8-core 2.1 GHz

Memory

16GB DDR4 ECC RDIMM, up to 128GB

Scalability

Up to 180/96 SAS/SATA drives2

Expandability

2 x PCIe 3.0 for additional add-in cards’ expansion

Small-to-hyperscale flexibility

Scalable up to 180/96 drives delivering more than 1.5 petabytes raw capacity, SA3400 can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.

Supercharge network performance effortlessly

Built-in dual 10GbE Ethernet ports and dual PCIe 3.0 slots provide high-speed network transmission with additional network interface cards' expansion.

Btrfs: Next generation storage efficiency

Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern, large-scale businesses:

Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders

Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots

File or folder level data restoration makes data recovery fast and flexible

Automatic file self-healing detects and recovers corrupted files without user intervention

Learn more about the benefits of using Btrfs

Ultimate Backup Solution

SA3400 integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Active Backup for Business

Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Learn more

Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Learn more

Synology Drive

Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
Learn more

Active Backup for
Office 365 / G Suite

On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Office 365 G Suite

Fully certified storage virtualization solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

5-year warranty

As we're committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

Synology Replacement Service (SRS)

SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity.Check service availability here.

Powered by Synology DSM

Synology Drive

A versatile solution for file management and synchronization.

Learn more

Synology MailPlus

Secure, reliable, and private mail server solution with an intuitive and modern mail client.

Learn more

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

Learn more

Active Backup Suite

Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Office 365, and G Suite.

Learn more

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Learn more

Hyper Backup

Store multiple backup versions with block-level incremental data backup and cross-version deduplication.

Learn more
  • 1 Power button and indicator
  • 2 Beep off button
  • 3 Drive status indicator
  • 4 Drive tray
  • 5 Power port
  • 6 PSU indicator
  • 7 PSU fan
  • 8 Console port
  • 9 1GbE RJ-45 port
  • 10 10GbE RJ-45 port
  • 11 USB 3.0 port
  • 12 PCIe expansion slot
  • 13 Expansion port
  • 14 Reset button

Notes:

  1. Performance figures may vary depending on environment, usage, and configuration.
  2. SA3400 can scale up to 96 drives with 7 x RX1217sas or 180 drives with 7 x RX2417sas, sold separately.
  • Hardware Specs
  • Software Specs

Hardware Specifications

CPU

CPU

 CPU Model Intel Xeon D-1541
CPU Architecture 64-bit
CPU Frequency 8-Core 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)

Memory

Memory

 System Memory 16 GB DDR4 ECC RDIMM
Memory Module Pre-installed 16 GB (16 GB x 1)
Total Memory Slots 4
Memory Expandable up to 128 GB (32 GB x 4)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

Storage

 Drive Bays 12
Maximum Drive Bays with Expansion Unit 96 (RX1217sas) / 180 (RX2417sas)
Compatible Drive Type* (See all supported drives)
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 1,536 TB (192 TB + 16 TB drive x 84) (Capacity may vary by RAID types)
Maximum Single Volume Size*
  • 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
  • Each internal volume (may consist of multiple drives) is expandble up to 108TB (with memory less than 32GB) or 200TB (with memory equal to or greater than 32GB).

External Ports

External Ports

 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
Expansion Port 1

PCIe

PCIe

 PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Add-In-Card Support PCIe Network Interface Card (Learn more)

File System

File System

 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.

Appearance

Appearance

 Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 14.5 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS1317)
Notes The rail kit is sold separately

Others

Others

 System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 49.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 500 W
Redundant Power Supply
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 137.17 W (Access)
70.95 W (HDD Hibernation)
British Thermal Unit 468.04 BTU/hr (Access)
242.09 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it's fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Temperature

 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Certification

Certification
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI

Warranty

Warranty

 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment

 RoHS Compliant

Packaging Content

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1

Optional Accessories

Optional Accessories
  • D4RD-2666-16G DDR4 ECC RDIMM*
  • D4RD-2666-32G DDR4 ECC RDIMM
  • Surveillance Device License Pack
  • Expansion Unit: RX1217sas X 7
  • Expansion Unit: RX2417sas X 7
  • Synology Ethernet Adapter E10G17-F2
  • Synology Ethernet Adapter E10G18-T1
  • Synology Ethernet Adapter E10G18-T2
  • Synology Rail Kit Sliding - RKS1317
  • VS360HD
  • VS960HD
Notes It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency. For more information, visit here.

DSM Specifications

Storage Management

Storage Management

 Maximum Internal Volume Number 256
Maximum iSCSI Target Number 256
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read Cache
SSD Read / Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10

File Services

File Services

 File Protocol CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections 4,000
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion) 10,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication

Account & Shared Folder

Account & Shared Folder

 Maximum Local User Accounts 16,000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32

High Availability

High Availability

 Synology High Availability

Log Center

Log Center
Syslog Events per Second 3,000

Virtualization

Virtualization

 VMware vSphere 6 with VAAI
Windows Server 2016
Citrix Ready
OpenStack

General Specifications

General Specifications

 Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Internet Explorer 10 onwards
  • Safari 10 onwards
  • Safari (iOS 10 onwards)
  • Chrome (Android 6.0 onwards)
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Add-on Packages view the complete package list

Antivirus by McAfee (Trial)

Antivirus by McAfee (Trial)

Central Management System

Central Management System

Synology Chat

Synology Chat
Maximum Users 6,000
Notes
  • The number of concurrent HTTP connections for Synology Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.

Document Viewer

Document Viewer

Download Station

Download Station
Maximum Concurrent Download Tasks 80

exFAT Access (Optional)

exFAT Access (Optional)

Synology MailPlus / MailPlus Server

Synology MailPlus / MailPlus Server
Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 1,100
Maximum Server Performance 4,471,000 emails per day, approx. 136GB
Notes
  • The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

Media Server

Media Server
DLNA Compliance

Moments

Moments
Facial Recognition
Subject Recognition
Auto Color & Rotate
Moments Select

PetaSpace

PetaSpace

Snapshot Replication

Snapshot Replication
Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536

Surveillance Station

Surveillance Station
Maximum IP cam (Licenses required) 100 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 3000 FPS @ 720p (1280x720)
2800 FPS @ 1080p (1920x1080)
1200 FPS @ 3M (2048x1536)
700 FPS @ 5M (2591x1944)
500 FPS @ 4K (3840x2160)
Total FPS (H.265)* 3000 FPS @ 720p (1280x720)
3000 FPS @ 1080p (1920x1080)
2400 FPS @ 3M (2048x1536)
1300 FPS @ 5M (2591x1944)
800 FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 900 FPS @ 720p (1280x720)
650 FPS @ 1080p (1920x1080)
490 FPS @ 3M (2048x1536)
320 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.

Synology Drive

Synology Drive
Recommended Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Sync Clients 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Exceeding the limits above may result in longer response time in file operations.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Synology Office
Maximum Users 3,400
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Video Station

Video Station
Video Transcoding Group 1 - Type 1 (See more)
Maximum Transcoding Channel Number 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1

Virtual Machine Manager

Virtual Machine Manager
Recommended Virtual Machine Instances 16 (Learn more)
Recommended Virtual DSM Number (Licenses required) 16 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.

VPN Server

VPN Server
Maximum Connections 40

Notes:

  • Model specifications are subject to change without prior notice.
