RT6600ax

Tri-Band Wi-Fi 6 Router

Synology Router RT6600ax Synology Router RT6600ax
Features Specs Where to buy
Ultrafast and secure wireless connectivity for your home, office, and everything in between
Tri-band Wi-Fi distributes your devices between radios, optimizing range and performance while avoiding bottlenecks.
Quad-core 1.8 GHz processor for snappy management and fast connection speeds, even with multiple devices connected and all features enabled.
Support for the new 5.9 GHz band, resulting in more dependable high-speed networks using clearer 80 and 160 MHz channels.
Support for the new 5.9 GHz band comparison chart
Up to
2.75x
higher maximum
throughput
Up to
4x
more concurrent
connections
Up to
2x
faster VPN server
performance
2.5GbE port configurable for WAN or LAN use supports superfast internet plans or high-performance devices.
Powered by Synology Router Manager (SRM), an intuitive OS built for security and performance
It begins with a solid network foundation Up to five networks Create up to 5 separate networks and 15 Wi-Fi SSIDs to distribute your devices based on their role or purpose. Network segmentation Isolate networks or set one-way access rules to limit connectivity to and from vulnerable devices. VLAN tagging Integrate the RT6600ax into existing networks with full VLAN support in router, AP, and mesh configurations.
With safe access to the internet using built-in security and parental controls
Featuring powerful web filtering, threat detection, and more User and network profiles Quickly enable default profiles or tailor them to your devices for maximum control over what happens on your network. Quotas, scheduling, and safer searches Keep offensive content out of reach and limit internet access with schedules or a quota-based system. Alerts and reporting Get notified when quotas are reached or when users try to access blocked websites. Automatically generated reports provide additional insights about how your network is used.
Easily allocate bandwidth to make room for what matters Traffic control helps you ensure an optimal experience for everyone. Configure per-device bandwidth limits or prioritize applications across devices. Learn more
Make everything work together to fit your network needs
Home NetworkGuest NetworkIoT NetworkOffice NetworkSurveillance Network
Your primary network is probably where most of your devices reside: laptops, tablets, smartphones, and smart TVs or speakers. Using Safe Access, you can easily create a default network profile that blocks malicious content and applies more restrictive filtering on shopping, adult, or other unwanted content — ideal for managing how children spend their time online.
Need to share internet access with neighbors or visiting friends? Synology SRM lets you easily isolate guest networks, and configure access for occasional connections to your Chromecast or AirPlay device. Apply more stringent bandwidth constraints and web filtering to ensure your network and connection quality are not affected by compromised devices.
Smart sensors and other IoT devices are convenient, but often pose a security risk because they receive less frequent updates. Keep these devices separated from your primary network so they don't provide backdoors for potential malicious attacks. For more advanced management, configure one-way firewall rules to allow limited access for specific devices.
More on IoT devices
Whether you're running your own business or just have a well-equipped studio or home lab setup, you can isolate your servers and devices, preventing interference and improving security if your network is hosting external resources or is often accessed by remote colleagues.
Keep IP cameras and devices storing security footage isolated, preventing unauthorized access if another network is breached. One-way firewall rules allow you to conveniently manage these sensitive devices without compromising security, while independent traffic control rules ensure that surveillance tasks never get interrupted or slowed down.
How convenience can meet securityIoT products can easily be isolated, avoiding potential exploitation without affecting functionality.GarageLiving room and kitchenGardens and yardsBedrooms and bathroomsNewer cars, dashcams, HVAC systems, and battery/solar power systems are often equipped with network connectivity for greater control and insight into their performance (e.g., energy generated from your solar installation).Many current TVs and speakers can respond to voice commands, making them an ideal fit for smart home platforms with multi-room playback capabilities and hands-free access. Smart connectivity also makes it possible to look up recipes or get timely reminders about the condition of food stored in your smart fridge.Video doorbells let you safely and conveniently check who is at your door. Smart gardening systems can automate watering your garden or lawn in case you're too busy. And when you have visitors, multiple PIR sensors and lights can be linked together to increase illumination and create a comfortable ambiance.Modern bedrooms can be furnished with networked window blinds, smart lighting, and HVAC controls to improve the atmosphere. Next-generation fire, smoke, and carbon monoxide sensors are easier to link together and can work in conjunction with your smartphone to send out critical safety alerts.
On-the-go management
Stay in control from anywhereAway from home? No problem. Connect easily through Synology DDNS, QuickConnect, or static IP/FQDN to view and manage your Synology router.
Comprehensive parental controlsCreate profiles, monitor usage, freeze internet access, and approve requests for access to specific pages. Be in control even when you aren't home.
Create Wi-Fi networksConfigure wireless networks directly from your smartphone and create QR codes for easy sharing.
Just about everything elseTraffic control and monitoring, port forwarding, and many other essential features are conveniently integrated into the mobile app.

On-the-go management

Stay in control from anywhere
Comprehensive parental controls
Create Wi-Fi networks
Just about everything else
On-the-go management
Stay in control from anywhereAway from home? No problem. Connect easily through Synology DDNS, QuickConnect, or static IP/FQDN to view and manage your Synology router.
Comprehensive parental controlsCreate profiles, monitor usage, freeze internet access, and approve requests for access to specific pages. Be in control even when you aren't home.
Create Wi-Fi networksConfigure wireless networks directly from your smartphone and create QR codes for easy sharing.
Just about everything elseTraffic control and monitoring, port forwarding, and many other essential features are conveniently integrated into the mobile app.
More than just VPN for secure remote network access Synology SSL VPN High-performance connection using the dedicated VPN Plus client enables seamless remote connectivity through SMB, RDP, SSH, and other protocols. WebVPN and Remote Desktop Convenient client-free connection to intranet-only websites. Built-in RDP/VNC client functionality enables remote operation of PCs and servers on your network. Site-to-site VPN Bridge separate locations and let families or teams connect to the same network.

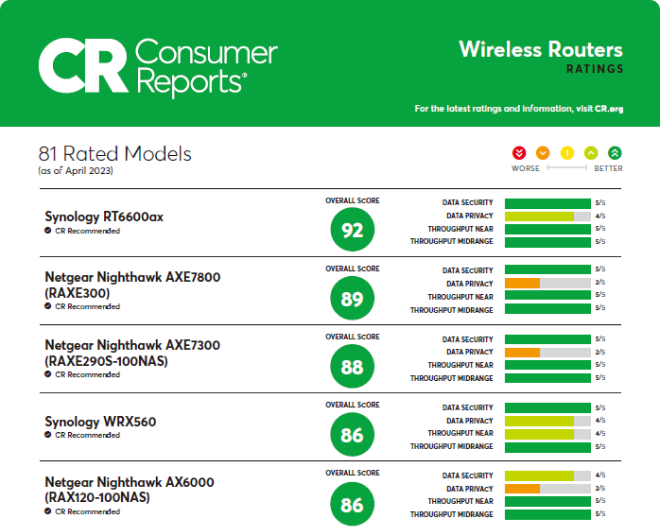

TechRadar Editor's Choice award If you’re worried about having both family and employees using the same router, this is where the outstanding networking segmentation features kick in. Learn more

Shop now

Shop for Synology routers at your favorite online store.

Frequently Asked QuestionsWhat is mesh Wi-Fi and what are the benefits of using it?
Mesh Wi-Fi is a whole-home Wi-Fi system that enables multiple routers to work together, providing wider and more reliable network coverage under a single Wi-Fi name.
How do I set up a Wi-Fi mesh network?

You will need at least two Synology Routers, one to function as the main unit and others as Wi-Fi points (see table for details). Setup is quick and easy and can be done through a web browser or the DS router mobile app. Refer to the following guide for detailed instructions.

Primary Wi-Fi PointAdditional Wi-Fi Point
RT6600axRT6600ax, WRX560, RT2600ac*, MR2200ac
WRX560WRX560, RT2600ac*, MR2200ac
RT2600acRT2600ac*, MR2200ac
MR2200acMR2200ac

*To use RT2600ac as an additional Wi-Fi point, users must upgrade to SRM 1.3 or above and then perform a hard reset.

What are VLANs and what are their benefits? How should I set them up?
See the following guide to learn about everything VLAN.
When setting up mesh, where do I place my Wi-Fi points for the best Wi-Fi signal?
See the following guide on best practices for router placement.
What is Synology Router Manager (SRM)?
Synology Router Manager (SRM) is the operating system that powers every Synology Router. With a best-in-class user interface, it gives detailed insight into what is happening on your network, and helps secure all connected devices against emerging threats. Learn more
Where can I find more information about Synology Routers?
See our Knowledge Center for more information about Synology Routers.
Learn more Safe Access Protect your network using smart parental controls and easy-to-configure web filters. Learn more VPN Plus Server Professional remote connectivity for your network — now free. Learn more Simply smarter Wi-Fi Synology SRM makes building out and optimizing your network quick and easy. Learn more
Notes:Dependent on local wireless regulations.Performance figures are obtained through internal testing by Synology. Actual performance may vary depending on the testing environment, usage, and configuration.
Hardware Specs Software Specs
Hardware Specifications
CPU
CPU
 Quad core 1.8 GHz
Hardware Acceleration Engine
Hardware Acceleration Engine
 Layer 4 / Layer 7
Memory
Memory
 1 GB DDR3
Antenna Type
Antenna Type
  • 4x4 MIMO Omni-directional high-gain dipole (5GHz)
  • 2x2 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)
LAN Port
LAN Port
  • 2.5GbE (RJ-45) x 1
  • Gigabit (RJ-45) x 3
WAN Port
WAN Port
  • Gigabit (RJ-45) x 1
  • 2.5 GbE (RJ-45) x 1 (Dual WAN)
External Ports
External Ports
 USB 3.2 Gen 1 x 1 (5V, 0.9A power output)
IEEE 802.11ax
IEEE 802.11ax
  • IEEE 802.11a/b/g/n/ac/ax
  • 5GHz-1: 4800Mbps
  • 5GHz-2: 1200Mbps
  • 2.4GHz: 600Mbps
  • 4x4 160MHz
  • Simultaneous tri-band Wi-Fi
Notes 160 MHz is not supported in Canada and Australia.
Wi-Fi Encryption
Wi-Fi Encryption
 WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
Button and Switch
Button and Switch
 WPS, Power, Reset, Wi-Fi On/Off
Size (Height x Width x Depth)
Size (Height x Width x Depth)
 175 mm x 320 mm x 200 mm
Notes Antennas in upright position
Weight
Weight
 1.6 kg
Temperature
Temperature
 Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
Certification
  • FCC
  • UKCA
  • CE
  • BSMI
  • VCCI
  • RCM
  • KC
  • iDA
  • TELEC
  • JATE
  • IC
Wi-Fi Certification
Wi-Fi Certification
  • CE
  • UKCA
  • FCC
  • NCC
  • RCM
  • iDA
  • TELEC
  • KC
  • IC
Warranty
Warranty
 2 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
AC Input Power Voltage
AC Input Power Voltage
 100 V to 240 V AC
Power Frequency
Power Frequency
 50/60 Hz, Single Phase
Power Consumption
Power Consumption
 11.11 W (Access)
6.77 W (Idle)
Environment
Environment
 RoHS Compliant
Packaging Content
Packaging Content
  • Main Unit X 1
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
SRM Specifications
Wireless
Wireless
 Wi-Fi MAC Address Filter
Maximum MAC Filters 64
Maximum devices on per MAC filter 256
Seamless Roaming 802.11k/v/r standard support
Beamforming
DFS
Maximum Number of Wi-Fi SSID 15
Schedulable Wi-Fi
Guest Network
  • Guest Portal
  • Customized page style
  • Connection time limit
  • Password Rotation
WPS 2.0 (Wi-Fi Protected Setup 2.0)
3G / 4G Dongle & Tethering (Learn more)
Primary Wi-Fi Point
Wi-Fi Point
Recommended Maximum Number of Wi-Fi Points
  • 1 Primary + 6 Wi-Fi points (in all wireless uplink connection environment)
  • 1 Primary + 12 Wi-Fi points (in all wired uplink connection environment. Learn more)
Maximum Connected Devices* 200
*Notes
  • The numbers above are for reference only. Actual performance and behavior may depend on network environment and settings
  • RT6600ax supports at least 200 connected devices concurrently transmitting data
Network
Network
 Internet Connection
  • Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
  • Android Tethering
  • iPhone Tethering
Operating Mode
  • Wireless Router
  • Wireless AP
DMZ
IPv6 IPv6 DHCP server/client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
DHCP Server/client mode, client list, MAC address reservation
Maximum DHCP Reservations 500
LAN / WLAN IGMP Snooping
Network Address Translation (NAT)
PPPoE relay
Policy route
Static route
Maximum IPv4 Static Routes 100
Maximum IPv6 Static Routes 100
Diagnosis Tools
  • Ping
  • Traceroute
NAT Loopback (Hairpinning)
VLAN
VLAN
 Maximum Number of Network Segmentation 5
Trunk
Port Forwarding
Port Forwarding
 Maximum Port Forwarding Rules 96
Maximum UPnP Rules 96
Port Triggering
Port Triggering
 Maximum Port Triggering Rules 64
Minimum Port Triggering Timeout 30s
Maximum Port Triggering Timeout 3600s
VPN
VPN
  • VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
  • VPN client (PPTP, OpenVPN, L2TP/IPSec)
  • VPN Pass-through (PPTP, IPSec, L2TP)
Traffic Control
Traffic Control
 Internet Ban, Device Speed & Priority
Application Layer (L7) Quality of Service (QoS)
Maximum Device Rules 64
Maximum Application Rules per Device 32
Traffic Monitor
Traffic Monitor
 Live View
Historical Statistics Daily, Weekly, Monthly, Annual
Website History
Application Detection
Traffic Report
Traffic Report
 Country Auto Update
Schedulable
Traffic Analysis Period Daily, Weekly, Monthly, Annual
Export Formats .CSV, .HTML
Add-on Packages view the complete package list
Safe Access
Safe Access
 User Profile 15
Network Profile 5
Customized Internet Schedule
Time Quota
IPv4 / IPv6 DNS-based Web Filter
  • Schedule
  • Database
  • Request to unblock
Customized Allow / Block List
  • Maximum blocked URLs: 200
  • Maximum allowed URLs: 200
Pause Internet
Reward
Log
Report
Safe Search Bing, Google, YouTube, Duckduckgo
Threat Intelligence Database Support in IPv4 & IPv6
Google Safe Browsing Support in IPv4 & IPv6
Database Auto Update Threat Intelligence Database, Google Safe Browsing, DNS-based web filter
Threat Prevention
Threat Prevention
 Greatly enhance the security of your router, designed to safeguard your network against internet threats
VPN Plus Server
VPN Plus Server
 Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP
Maximum Client VPN Access License 40
Site-to-Site VPN
Maximum Site-to-Site VPN Tunnels 20
Remote Desktop (RDP + VNC) 5
Connection List
Log
Report
DNS Server
DNS Server
 Helps users find and translate domain names into IP addresses
Download Station
Download Station
 Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum Concurrent Download Tasks 20
Maximum Concurrent BT Download Tasks 20
Media Server
Media Server
  • Media indexing
  • DLNA Compliance
RADIUS Server
RADIUS Server
 Provides centralized authentication, authorization, and accounting for wireless network access
Mobile Apps
Supported Mobile Apps
Supported Mobile Apps
 DS router (Android/iOS)
  • First Time Installation
  • Network overview
  • Wi-Fi management
  • Wi-Fi system topology
  • Safe Access
  • Traffic Control
  • Network security (firewall, port forwarding, Internet ban)
  • Wake on LAN
  • System Update
VPN Plus (Android/iOS)
DS get (Android)
DS file (Android/iOS)
Management
Operating System
Operating System
 Synology Router Manager (SRM)
Anywhere Access to SRM
Anywhere Access to SRM
 Synology QuickConnect & Dynamic DNS (DDNS)
Security
Security
 Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication
Wake on LAN (WOL)
Wake on LAN (WOL)
 WOL over QuickConnect
Maximum Connected Devices 100
Notification
Notification
 Email, SMS, push service (via DS router)
Printer Server
Printer Server
 Maximum printer: 1
Others
Others
 Free OS Upgrade
SSH
SNMP
Configuration Backup & Restore
User Account Management
USB/SD Card File Service
File System
File System
 EXT4, FAT, NTFS, HFS+
Access Support
Access Support
  • File explorer (via LAN only)
  • Web browsers: Chrome™, Firefox®, Microsoft Edge, Safari
  • Mobile device: DS file
Protocol Support
Protocol Support
 Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV
Others
Others
 Apple Time Machine
Shared Folder Privileges
Storage Hibernation
Notes: Model specifications are subject to change without prior notice. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
