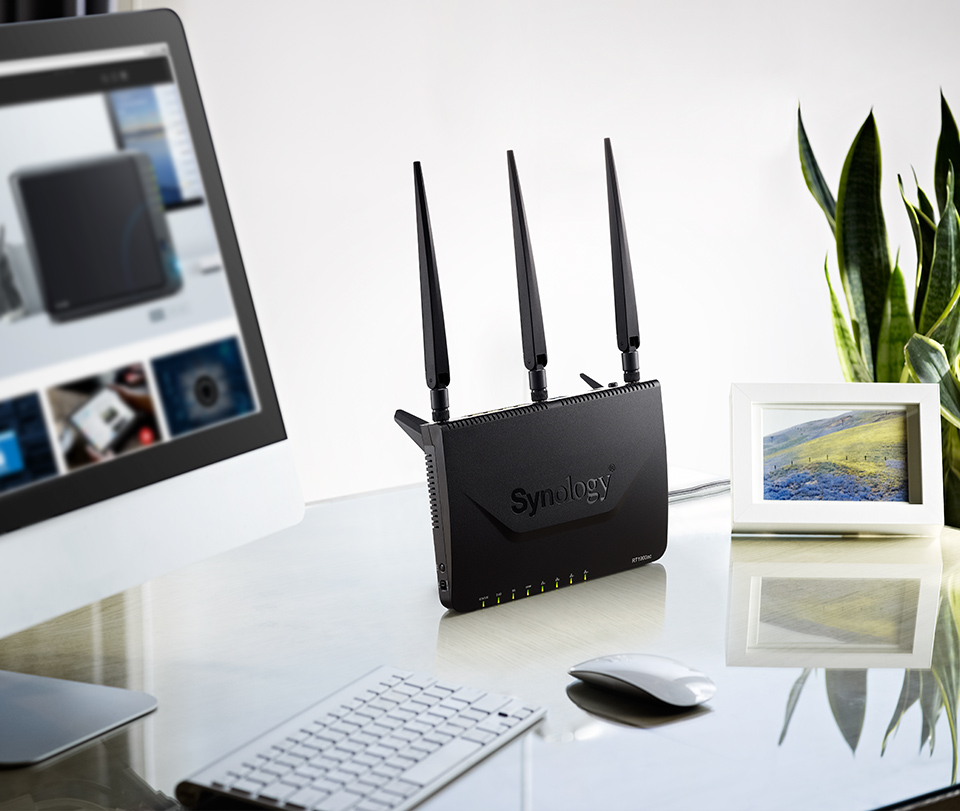

Synology Router RT1900ac

Synology Router RT1900ac is a high-speed wireless router designed for homes and offices. The latest wireless technologies provide swift and reliable Wi-Fi connectivity. The revolutionary software experience is incredibly intuitive even for non-techy people. And advanced management tools enable power users to fine-tune the flow of data in the network.

Game-changing software experience

Synology Router Manager (SRM) 1.1 is the operating system that powers the Synology Router RT1900ac. With the friendly interface, it makes managing your network and Wi-Fi settings super simple, while delivering robust tools for power users and professionals.

Tap, swipe, and manage everything

Install the DS router on your Android or iOS device and conveniently manage settings on Synology Router RT1900ac from the palm of your hand. DS router delivers robust tools and options, such as easy installation, wireless network management, real-time traffic monitoring and controls, as well as much more.

Quick and easy setup

Synology Router RT1900ac is designed to simplify the initial setup process. Simply plug it into your existing modem, enter router.synology.com in a web browser, and follow the interactive installation guide to finish.

Connect cables according to the included installation note
With a computer connected to Synology Router, open a web browser and go to router.synology.com
Complete the installation guide, and your Synology Router will be ready!

Fast, reliable Wi-Fi

Equipped with three powerful antennas and support for the latest 802.11ac wireless networking standard, Synology Router RT1900ac broadcasts both 2.4 and 5 GHz spectrums for combined data transfer speeds of up to 1900 Mbps. Never worry about speed bottlenecks even when multiple people are connected to the network.

Lag-free online gaming

Take advantage of easy-to-use bandwidth prioritization and network traffic controls, so your games always get the speed and low latency they need.

Smooth video streaming

Enjoy buffer-free playback when streaming 4K movies from your favorite online video service, or play home videos stored on external storage directly on a DLNA compatible TV or media player.

Fast file transfers

Share important files and documents quickly and smoothly when collaborating with business partners or others.

Robust connectivity with Beamforming

Traditional routers broadcast wireless signals in all directions, regardless of the position of your laptop or smartphone. With smart Beamforming technology, Synology Router RT1900ac focuses wireless signals toward up to six supported devices, reducing latency, economizing power consumption, and improving wireless range.

Powerful connectivity management

For advanced home users and company admins, Synology Router Manager 1.1 delivers tools to manage connectivity so your network runs smoothly and just the way you want.

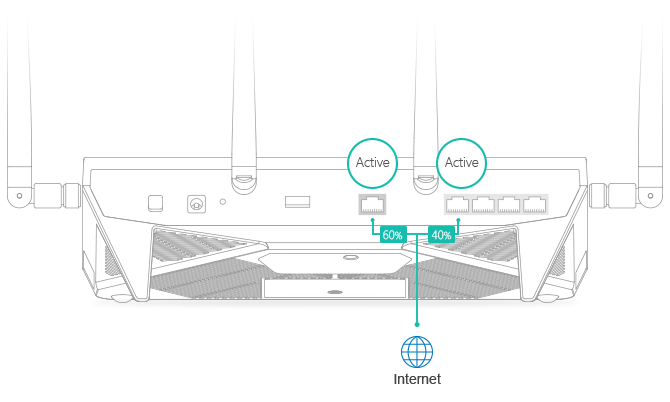

Smart WAN

For those who need uninterrupted network connectivity, Smart WAN allows Synology Router RT1900ac to connect to the Internet via two network interfaces. If one of the connections goes offline due to ISP problems or other issues, traffic can failover to the other interface. Additionally, load balancing can spread traffic across both interfaces according to customizable settings, allowing you to route traffic through a specific interface according to the destination or source address.

Failover
Load balancing

Smart Connect

Not sure which devices should connect to the 2.4 and 5 GHz bands? With Synology's Smart Connect wireless technology, devices are connected to the most appropriate band automatically according to preset or customizable criteria, letting users experience the best Wi-Fi without worrying about technical details.

Content filtering & monitoring

Synology Router Manager (SRM) 1.1 includes advanced traffic tools that surpass the common router. Limit bandwidth consumption, block malicious content, and fine-tune how data travels through your home or office network.

Application Layer QoS

Powered by a deep packet inspection engine, Application Layer QoS (Quality of Service) lets you see how much bandwidth is consumed by individual applications and devices. If someone is hogging too much bandwidth on non-essential applications — like YouTube or Spotify — you can restrict the amount of bandwidth the device can use for the specific application, without affecting the bandwidth available for other applications.
Traffic report

To better manage and assess bandwidth requirements, you can generate easy to understand reports detailing the traffic usage of applications and devices over a specific period of time. Network administrators can use these reports to better understand traffic, check if certain devices or applications are consuming too much bandwidth, and investigate security concerns.
Parental Controls

For parents or business owners, it's easy to set a schedule to control when children or employees are allowed to access the Internet. In addition, with built-in Google SafeSearch integration and a vast database of inappropriate websites, you can customize what kinds of content are permitted and effectively block thousands of sites with a few simple clicks. Having multiple customizable profiles allows for blocking different types of content for specific family members or employees.
Intelligent web filtering

Whereas traditional routers implement URL-based web filtering to block or allow specific content in the network, Synology Router Manager includes a more intelligent web filtering which checks if content is blocked or allowed during the DNS lookup stage of communication, making it harder to sneak through and see unauthorized content, while also reducing system resource consumption.

Protect your network

In addition to standard security tools like denial-of-service blocking and firewall management, Synology Router Manager delivers innovative tools to help protect your network from outside attacks.

Intrusion Prevention Beta

The Intrusion Prevention add-on package brings intrusion detection system (IDS) and intrusion prevention system (IPS) features to actively protect your network and devices from malicious parties. IDS analyzes traffic and detects intrusion within network, thus enhancing security rules to avoid future security problems. IPS inspects network packets in order to proactively prevent suspicious traffic and requests from entering your network.

Security Advisor

This handy diagnostics tool helps you optimize and understand security settings for your specific environment. By performing a comprehensive analysis of system settings, password strength, and network preferences, Security Advisor minimizes security holes and protects Synology Router RT1900ac — and your whole network.

QualysGuard Security Scan

Synology strives to guarantee a secure software experience for all users. With the help of QualysGuard, a trusted and market-leading vulnerability scanner, Synology can conduct thorough system scans and implement remediation. See security scan results

Take your files everywhere

By connecting an external storage device, Synology Router RT1900ac can become a private cloud server, allowing you to access files from anywhere, share photos with family and friends, or backup data from your Windows or Mac computers.

Browse and manage files

File Station is a handy file explorer for organizing and sharing files stored on storage devices connected to Synology Router RT1900ac. Upload files from a computer by simply dragging and dropping them into your browser, and then share with friends or coworkers by simply sending them a link.

Synchronize data across devices

Cloud Station lets you set up a private file syncing server, so you can synchronize documents, videos, or photos between Synology Router RT1900ac and other devices, like your computer or mobile devices. When you modify a file on one device, it is automatically updated on the other devices, allowing you to move between home and work, desktop and mobile, all while seamlessly working on the same file.

Back up personal computers

With the Cloud Station Backup application, you can easily back up files from your Windows, Mac, or Linux computers to a storage device connected to Synology Router RT1900ac. File version history saves up to 32 copies of each file, allowing you to go back in time and recover files that were overwritten or accidentally deleted.

Works with Time Machine

With support for Apple's Time Machine backup, Mac users can connect an external storage device to Synology Router RT1900ac and start backing up files from one or more Mac computers. Since the backup tasks are handled over the network, you skip the hassle of plugging in an external hard drive every time you want to back up data.

VPN support, RADIUS server, and other possibilities

Go beyond a simple router with a rich selection of add-on software packages available on Synology's Package Center. Transform your Synology Router RT1900ac into a personal VPN server, professional RADIUS authentication server, 24/7 download hub, multimedia library, or add other handy features for use at home or the office.

Download Station

Media Server

VPN Server

DNS Server

RADIUS Server

Dual guest Wi-Fi

You can create dual guest wireless networks, allowing temporary visitors to connect to the Internet, while restricting them from accessing local resources, such as servers with sensitive data and files. This is useful for businesses or other institutions who want to provide a wireless connectivity for visitors, but keep them from accessing sensitive resources, such as the office file server.
Anywhere access with QuickConnect

Synology's free QuickConnect service is the simplest way to access your Synology Router RT1900ac, even when you're away from home or the office. Just register a unique and customizable QuickConnect ID, and you’ll to be able to log in to Synology Router Manager, access connected storage devices, and do much more from anywhere with an Internet connection.
Network Tools

With Network Tools, you can easily test, analyze, and troubleshoot network connections using the Ping and Traceroute tools. In addition, you can remotely wake up devices connected to Synology Router RT1900ac using the Wake on LAN panel.
Printer sharing

The USB port allows for sharing a printer across your wireless network. Simply plug it in and everyone connected to the network can take advantage of a centralized network printer — without having to worry about plugging in more wires.

Standing position for improved cooling and performance

Synology Router RT1900ac comes with an optional standing kit, allowing it to be placed in an upright position. In addition to saving space, the stand kit helps dissipate excess heat and thus deliver improved wireless performance.

Hardware Specifications
CPU	Dual core 1.0 GHz
Memory	256 MB DDR3
Antenna type	3x3 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)
LAN port	Gigabit (RJ-45) x 4
WAN port	Gigabit (RJ-45) x 1
External Ports	USB 3.0 x 1 (5V, 1.5A power output) SD card reader x 1 (SDXC, SDHC)
Button and switch	WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off
Appearance
Size (Height x Width x Depth)	66 mm x 206 mm x 160 mm
Note	The listed sizes of the RT1900ac and RT2600ac don’t include the antennas
Weight	0.51 kg
Temperature
Operating Temperature	5°C to 40°C (40°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI CCC RCM
Wi-Fi Certification	CE FCC NCC RCM iDA SRRC
Warranty	2 Years
Others
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	10.82 W (Access) 7.45 W (Idle)
Wireless
IEEE 802.11ac	IEEE 802.11a/b/g/n/ac Simultaneous dual-band Wi-Fi 2.4GHz: 600Mbps (256-QAM supported) 5GHz: 1300Mbps
Wi-Fi Encryption	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Wi-Fi MAC address filter
Maximum MAC filters	64
Beamforming
DFS
Schedulable Wi-Fi
Guest Network
Guest Portal
Customized page style
Connection time limit
Password Rotation
WPS 2.0 (Wi-Fi Protected Setup 2.0)
3G/4G Dongle & Tethering (Learn more)
Maximum connected devices	70
Note	In real-world testing, RT1900ac could have at least 70 devices connected concurrently, with the tested device ratio of 5GHz (channel 161) : 2.4GHz (channel 1) = 1 : 3. Not all of the connected 70 devices in the testing are in transmission, some of them remained idle. RT1900ac supports at least 40 connected devices that are concurrently transmitting data. The numbers above are for reference only, which could vary dynamically according to users' network scenarios and conditions.
Network
Internet connection	Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
3G/4G LTE dongle
Android tethering
iPhone tethering
Note	iPhone tethering only supported your Synology Router running SRM 1.2 or above
Operating mode	Wireless Router Wireless AP Wireless Client
Port forwarding	Setup via manual management or UPnP
Maximum port forwarding rules	64
Maximum UPnP rules	64
Port triggering
Maximum port triggering rules	32
Minimum port triggering timeout	30s
Maximum port triggering timeout	3600s
DMZ
IPv6	IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
DHCP	Server/client mode, client list, MAC address reservation
Maximum DHCP reservations	500
LAN/WLAN IGMP snooping
VPN	VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site) VPN client (PPTP, OpenVPN, L2TP/IPSec) VPN Pass-through (PPTP, IPSec, L2TP)
Policy route, Static route, Network Address Translation (NAT), PPPoE relay
Maximum IPv4 static routes	100
Maximum IPv6 static routes	100
Diagnosis tools	Ping Traceroute
Safe Access
Parental Control
User Profile	15
Network Profile	2
Customized Internet schedule
Time Quota
IPv4/IPv6 DNS-based web filter	Schedule Database Request to unblock
Note	RT1900ac supports only in IPv4
Customized allow/block list	Maximum blocked URLs: 100 Maximum allowed URLs: 100
Pause Internet
Reward
Log
Report
Security
Safe Search	Bing, Google, YouTube
Threat Intelligence Database	only support in IPv4
Google Safe Browsing	only support in IPv4
Database auto update	Threat Intelligence Database, Google Safe Browsing , DNS-based web filter
Traffic Control
Internet ban, device speed & priority
Application layer (L7) quality of service (QoS)
Maximum device rules	64
Maximum application rules per device	32
Traffic Monitor
Live view
Historical statistics	Daily, Weekly, Monthly, Annual
Website history
Application Detection
Traffic Report
Country auto update
Schedulable
Traffic analysis period	Daily, Weekly, Monthly, Annual
Export formats	.CSV, .HTML
VPN Plus Server
VPN Plus Server	Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP
Maximum Client VPN Access License	10
Site-to-Site VPN
Site-to-Site Tunnels	4
Remote Desktop (RDP + VNC)	3
Connection List
Log
Report
Threat Prevention
Threat Prevention	Greatly enhance the security of your router, designed to safeguard your network against internet threats
Support
Package Center
Cloud Station Server	Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files
Maximum Concurrent File Transfers	64
Note	Cloud Station ShareSync is not supported
DNS Server	Helps users find and translate domain names into IP addresses
Download Station	Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum concurrent download tasks	50
Maximum concurrent BT download tasks	20
Media Server (DLNA/UPnP®)	Media indexing DLNA Compliance PS3/PS4/Xbox 360/Xbox One supported
RADIUS Server	Provides centralized authentication, authorization, and accounting for wireless network access
Mobile Apps
DS router (Android/iOS)	First Time Installation Network overview Wi-Fi management Wi-Fi system topology Safe Access Traffic Control Network security (firewall, port forwarding, Internet ban) Wake on LAN System Update
VPN Plus (Android/iOS)
DS cloud (Android/iOS)
DS get (Android)
DS file (Android/iOS)
Management
Operating system	Synology Router Manager (SRM)
Free OS upgrade
Anywhere access to SRM	Synology QuickConnect & Dynamic DNS (DDNS)
Security	Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication
Wake on LAN (WOL)
WOL over QuickConnect
Maximum connected devices	100
Notification	Email, SMS, push service (via DS router)
SSH
SNMP
Configuration backup & restore
User account management
Printer server	Maximum printer: 1
USB/SD Card File Service
File System	EXT4, FAT, NTFS, HFS+
Access support	File explorer (via LAN only) Web browsers: Chrome™, Firefox®, Internet Explorer®: 11 onwards, Safari® 11 onwards Mobile device: DS file
Protocol support	Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV
Apple Time Machine
Shared Folder privileges
Storage hibernation
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Antenna X 3 Stand Kit X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1 Welcome Note X 1
