SA3410 | Synology Inc.

SA3410 SA3410

SA3410

Flexible petabyte-scale storage for growing storage needs

Features Specs

Trusted by professionals across all industries.

Information Technology Manager - Government

Director of Enterprise Infrastructure - Education

Director Media Services - Media

Senior Systems Engineer - Media

CEO - IT Services

Server Administrator - Retail

When scalability meets performance

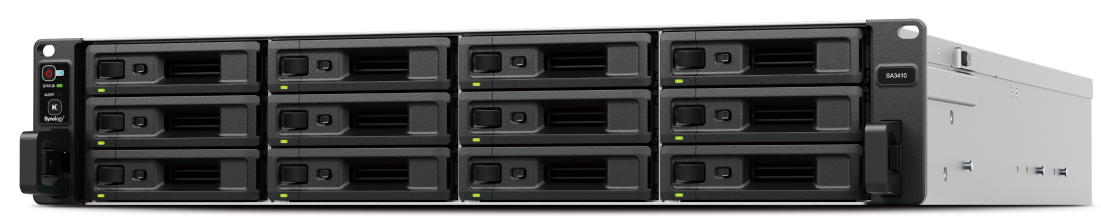

The Synology SA3410 is designed for on-demand scalability and offer up to 1.7 PB of storage when fully expanded. They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.

Download Datasheet

Fast and reliableOver 6,200/3,000 MB/s seq. read/write, built-in 10GbE, and hardware and software redundancy.

Expand and adjustAdd up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes whenever needed.

Host core applicationsBack up 1,000+ endpoints, manage 200 IP cameras, or provide mailboxes for up to 1,600 users.

Flexibly expand storage capacity

Scale up your SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.

SA3610 and SA3410 can scale up to 1.9 PB of storage

Networking capabilities

Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.

Reliable and dependable

Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.

Data mirroring

Create a Synology High Availability (SHA) cluster on your servers to minimize data loss and enjoy minute-level failover with two SA3410 to act as active and passive servers.Learn more

Dual power supply

Reduce the possibility of power disruptions with redundant PSUs and reduce single points of hardware failure with redundant system fans.

Remote management

Take charge of your device, even if your primary networks are down. With out-of-band (OOB) management, you remotely troubleshoot your device.

Data resiliency

Set up near-instantaneous snapshot and replication tasks for file and folder level restoration to ensure business continuity and leverage Btrfs for file self-healing. Learn more

Versatile data storage

Consolidate business data, backup data, and more in a highly scalable server.

File server

Backup repository

Business application platform

File server

Utilize SA3410's storage capacity and flexible expansion capabilities to host large amounts of data on a central repository.

Private cloud

Share and sync files with an all-in-one private cloud solution

Empower employees across your organization to access, edit, and share corporate files securely and conveniently from desktop, mobile, or web browser platforms. Leverage powerful admin tools to track and set file permissions and control access to documents and files.Learn more

Enforce company policies with Windows AD and SMB/NFS

Configure and implement group policies for groups of users using access control lists (ACL) through Windows Active Directory/LDAP integration. Enable user access to files or folders via SMB or NFS protocols.

Cross-site file sync

Sync files across business sites

Synology Drive ShareSync enables one or two-way syncing between multiple Synology servers so that all team members can access the same set of data on their nearest file server.Learn more

Reduce storage footprint

Cut bandwidth use, boost sync speeds, and reduce storage footprint by intelligently syncing the bulk of your data to the cloud with Hybrid Share, while deploying Synology devices locally to give teams fast access to all their frequently used data at local network speeds.Learn more

Backup repository

Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.

Back up Windows and Linux endpoints

Bare-metal PC, server, and VM backup

Securely back up Windows clients and servers, Linux endpoints, Synology systems, and VMware® and Hyper-V® virtual machines to the SA3410 with Active Backup for Business. Manage all tasks through a centralized management console and choose between bare-metal or file-level restoration. Built-in data deduplication maximizes storage efficiency.Learn more

Protect company SaaS accounts

Protect Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.Learn more

Back up your Synology systems

Flexible off-site backup for shares and LUNs

Use Hyper Backup to back up shared folders, LUNs, system settings, and software packages from your Synology system to a secondary server, external device, or Synology C2 Storage. Set up backup schedules, multi-versioning, and flexible backup rotation, protect data with fine-grained permissions and encryption, and reduce backup sizes with built-in deduplication.Learn more

Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.Learn more

Bare-metal backup for Synology systems

Perform bare-metal backups and use multi-versioning and data deduplication to store backup copies of Synology systems, while drastically reducing the amount of space needed to store mission-critical data.

Business application platform

Boost team efficiency by utilizing Synology productivity solutions to work and communicate across teams or test out new software in company-hosted containers or virtual machines.

Synology productivity solutions

Collaborative tools for team productivity

Create, edit, and share documents, slides, and spreadsheets with teams in real time. Store files in a secure private cloud to take ownership of your data.Learn more
Send and receive emails on Synology’s private email server using powerful webmail tools and experience full data ownership, transparent total cost of ownership, and robust security features.Learn more
Stay connected with team members by using secure one-on-one chats, public channels, encrypted private channels, and group conversations for efficient workplace communication.Learn more

Containerization and virtualization-ready

Test out applications in a contained environment

Safely test out new packages, software, and applications in an isolated environment using Docker and Synology Virtual Machine Manager (VMM) — a hypervisor for Windows®, Linux®, and Virtual DSM.Learn more

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System (CMS)

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more. Learn more

Active Insight

Monitor your global Synology fleet’s performance, backup status, login activity and more with the power of the cloud. Learn more

Synology has got you covered

The SA3410 is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance. Learn more

Backed by Synology hard drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.

HDD

Enterprise Series 3.5" SAS

Enterprise Series 3.5" SATA

SSD

Enterprise Series 2.5" SATA

Enterprise Series M.2 NVMe

Hardware Overview

1Power Button and Indicator
2Status Indicator
3Alert Indicator
4Mute Button
5Drive Status Indicators

6Drive Trays
7Rail Kit Release Tabs
8PSU Fans
9Power Ports
10PSU Indicators

11Console Port
121GbE RJ-45 Ports
1310GbE RJ-45 Ports
14USB 3.2 Gen 1 Ports
15Management Port

16PCI Express Expansion Slots
17Expansion Port
18Reset Button

Notes:Gartner® and Peer Insights™ are trademarks of Gartner, Inc. and/or its affiliates. All rights reserved. Gartner Peer Insights content consists of the opinions of individual end users based on their own experiences, and should not be construed as statements of fact, nor do they represent the views of Gartner or its affiliates. Gartner does not endorse any vendor, product or service depicted in this content nor makes any warranties, expressed or implied, with respect to this content, about its accuracy or completeness, including any warranties of merchantability or fitness for a particular purpose.SA3410 unit supports up to 96 drives with seven Synology RX1222sas expansion units, sold separately.Performance figures obtained through internal testing by Synology using a RAID 6 configuration. Actual performance may vary depending on the testing environment, usage, and configuration. See performance charts for more information.For the most up-to-date list of compatible NICs and HBAs, please check our compatibility list.SSD cache can be enabled by using Synology SAT5200 Series 2.5" SSDs or without occupying drive bays by installing Synology SNV3500 Series NVMe SSDs with M2D20 or E10M20-T1 adapter cards. All devices are sold separately.Supports up to 200 IP cameras on a single Synology server with Synology Surveillance Station. Up to 10,000 cameras can be managed per deployment by adding more recording servers with Surveillance Station CMS. Surveillance Station includes 2 free licenses. Connecting more cameras and devices requires additional licenses. Learn more C2 Storage for Hybrid Share requires purchase of an eligible annual or monthly subscription. A free trial is available for each newly registered device.Certain advanced features require Virtual Machine Manager Pro. One Virtual DSM license is included. Additional Virtual DSM instances require the purchase of Virtual DSM Licenses.The warranty period starts from the date of purchase as stated on your purchase receipt. Visit https://www.synology.com/company/legal/warranty for more information.

Hardware Specs

Software Specs

Hardware Specifications
CPU
CPU	CPU Model	Intel Xeon D-1541
	CPU Quantity	1
	CPU Cores	8
	CPU Threads	16
	CPU Architecture	64-bit
	CPU Frequency	2.1 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine
Memory
Memory	System Memory	16 GB DDR4 ECC RDIMM
	Total Memory Slots	4
	Maximum Memory Capacity	128 GB (32 GB x 4)
	Notes	Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	96 (RX1222sas x 7)
	Drive Type (See all supported drives)	3.5" SAS HDD 2.5" SAS SSD 3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports
External Ports	RJ-45 1GbE LAN Port	4
	RJ-45 10GbE LAN Port	2
	Out-of-Band Management LAN Port	1
	Max. Number of LAN Ports	15
	USB 3.2 Gen 1 Port	2
	Expansion Port	1
	Expansion Port Type	Mini-SAS HD
	Notes	MTU value of 1GbE LAN port has a limit of 1500.
PCIe
PCIe	PCIe Expansion	2 x Gen3 x8 slots (x8 link)
Appearance
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
	Weight	14.5 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS-02)
	Notes	The rail kit is sold separately
Others
Others	System Fan	80 mm x 80 mm x 4 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	49.8 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	550 watts
	Redundant Power Supply
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	136.15 watts (Access) 58.48 watts (HDD Hibernation)
	British Thermal Unit	464.56 BTU/hr (Access) 199.54 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Operating Humidity	8% to 80% RH
	Storage Humidity	5% to 95% RH
Certification
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS UL
Warranty
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
Environment	RoHS Compliant
Packaging Content
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories
Optional Accessories	DDR4 ECC RDIMM: D4ER01-16G/D4ER02-32G Expansion Units: RX1222sas Enterprise Series 3.5" SAS HDD: HAS5300 Series Enterprise Series 3.5" SATA HDD: HAT5300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1 Rail Kit Sliding: RKS-02
	Notes	For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

DSM Specifications
Storage Management
Storage Management	Maximum Single Volume Size	1 PB (64 GB memory required, for RAID 6 groups only) 200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	256
	SSD Read/Write Cache (Determining cache size)
	SSD TRIM
	RAID Group
	Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Volumes over 108 TB require 32 GB of memory or more. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. When Peta Volume is enabled, validated services and packages are required. Please refer to this article for more information on limitations.
File System
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT
File Services
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Number of SMB Connections (FSCT-Based)	1,900
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes	Connection value of this model is tested with Synology SATA SSD fully populated and up to four 10GbE network ports Models with expandable memory are tested with the maximum supported quantity installed. SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled
Account & Shared Folder
Account & Shared Folder	Maximum Local User Accounts	5,120
	Maximum Local Groups	512
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	32
Hybrid Share
Hybrid Share	Hybrid Share Folder Number	15
Hyper Backup
Hyper Backup	Data & Folder Backup
	Entire System Backup
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability
High Availability	Synology High Availability
Log Center
Log Center	Syslog Events per Second	3,000
Virtualization
Virtualization	VMware vSphere	ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
	Microsoft Hyper-V	Windows Server 2022
	Citrix XenServer	XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
	OpenStack	Cinder
General Specifications
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System
Central Management System
Synology AI Console
Synology AI Console	Third-Party AI Model Integration
	Maximum De-Identification Rate	1,900 words per second
	Notes	De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text. To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.
Synology Chat
Synology Chat	Maximum Number of Users	500
	Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with the maximum supported quantity installed.
Download Station
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager
SAN Manager	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Maximum Number of Users	4,100
	Notes	The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements. Operating in high-availability mode will incur additional overhead. Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).
Media Server
Media Server	DLNA Compliance
Synology Photos
Synology Photos	Facial Recognition
	Object Recognition
Snapshot Replication
Snapshot Replication	Maximum Snapshots per Shared Folder	512
	Maximum Snapshots per LUN	128
	Maximum Snapshots per System	16,384
	Maximum Replication Tasks for Shared Folders	64
	Maximum Replication Tasks for LUNs	32
	Maximum Replication Tasks per System	64
Surveillance Station
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Maximum IP Cameras and Total FPS (H.264)	1080p: 160 channels, 2800 FPS 3M: 160 channels, 1600 FPS 5M: 120 channels, 1200 FPS 4K: 80 channels, 800 FPS
	Maximum IP Cameras and Total FPS (H.265)	1080p: 200 channels, 6000 FPS 3M: 160 channels, 2800 FPS 5M: 160 channels, 1600 FPS 4K: 120 channels, 1200 FPS
	Notes	Surveillance Station 9.1.3 or above is required to support the maximum IP cameras and FPS figures listed. Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.
Synology Drive
Synology Drive	Maximum Number of Users	3,500
	Maximum Number of Hosted Files	25,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Synology Office	Maximum Number of Users	3,400
	Notes	The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
Virtual Machine Manager	Recommended Virtual Machine Instances	16 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	16 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server
VPN Server	Maximum Connections	32

Notes: Model specifications are subject to change without prior notice. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
