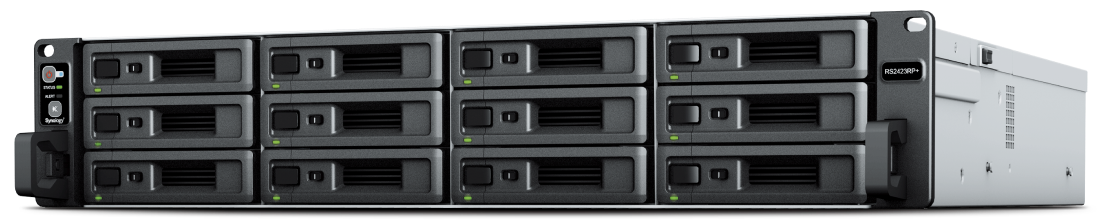

RackStation RS2423RP+

RackStation RS2423RP+

Efficient storage for centralized data management

Product Image RS2423RPplus
Product Image RS2423RPplus
Trusted by professionals across all industries.
Synology is a solid storage with great capabilities out of the box. The licensing model of all-inclusive software adds great value to the product.
Information Technology Manager - Government
Synology provides a single-platform solution for all of our backup needs in a cost effective manner.
Director of Enterprise Infrastructure - Education
Synology's DSM is a masterpiece, designed to be user-friendly even for non-IT professionals, helping us become less reliant on out IT teams.
Director Media Services - Media
Working with Synology Products has just been the best. Its an all in one product that can cater for all aspects of Storage.
Senior Systems Engineer - Media
The Synology brand is very feature-rich and unbeatable in terms of price/performance in the NAS segment. Our current testing was primarily focused on backup, which delivered reliability alongside adequate performance.
CEO - IT Services
Smooth storage server setup with intuitive OS and reliable automation features
Server Administrator - Retail
Secure storage for your businessDownload Datasheet Business-readyOver 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 240 TB raw storage before expansion.Flexible configurationAdd 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.Versatile applicationsBack up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.
Faster and more responsiveThe RS2423RP+ offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput. They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
4K Random IOPS Sequential Throughput
The RS2423+ features 27% faster sequential reads and 26% faster sequential writes compared to its predecessor
The RS2423+ features 60% faster random 4K IOPS reads and 16% faster random 4K IOPS writes compared to its predecessor
Designed for reliability
The RS2423RP+ comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.Two RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansionEasily adjust the 2U 12-bay RS2423RP+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.Storage expansionAdd 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.SSD cacheBoost read/write IOPS for HDD arrays with NVMe or SATA SSD cache.Flexible networking optionsImprove I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.Versatile storage for businessesThe RS2423RP+ is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.Intuitive storage for on-site and remote teamsMulti-endpoint data protectionSmart and scalable surveillanceIntuitive storage for on-site and remote teamsProvide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Private file cloudEnable efficient collaboration with Synology DriveSynology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.Learn moreMulti-platform supportAccess personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.Collaborate in real timeEnable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.Learn more
Efficient multi-site synchronizationConnect teams with Hybrid ShareUse Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.Learn moreReliable data access on demandWith Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.Local caching of most-used dataFrequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.
Multi-endpoint data protectionDesign an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Consolidated backup serverEndpoint, VM, and NAS/SAN protectionSecurely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.Learn moreMicrosoft 365 and Google WorkspaceCentralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.Learn more
Data protection and recoveryHyper BackupBack up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,public cloud platforms, USB devices, file servers, local folders, and other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.Snapshot ReplicationSnapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.Learn more
Smart and scalable surveillanceLeverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Simple-to-deploy local surveillanceWide device compatibilityConnect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station’s wide camera compatibility.Multi-platform convenienceMonitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.Secure and private storageFootage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Flexible monitoring of multiple locationsAssisted camera deploymentAutomatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.Centralized management and monitoringStay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.Time-saving video analyticsTake advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.

Works best with Synology drives

Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.

Get more with DiskStation Manager

Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Learn more

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Learn more

Synology High Availability

Real-time system-level protection with automatic failover mechanism to maximize service availability.

Synology has you coveredThe RS2423RP+ is backed by Synology’s 3-year hardware warranty. An optional 2-year extended warranty is available in select regions to extend coverage to 5 years. Learn more
Hardware Overview
  • 1Power Button and Indicator
  • 2Status Indicator
  • 3Alert Indicator
  • 4Mute Button
  • 5Drive Status Indicators
  • 6Drive Trays
  • 7Rail Kit Release Tabs
  • 8Power Port
  • 9PSU Indicators & Alert Off Buttons
  • 10PSU fans
  • 11Console Port
  • 12PCI Express Expansion Slot
  • 131GbE RJ-45 Ports
  • 1410GbE RJ-45 Port
  • 15USB 3.2 Gen 1 Ports
  • 16Expansion Port
  • 17Reset Button
  • First Product Image
  • Second Product Image
  • Third Product Image
  • Fourth Product Image
  • Fifth Product Image
  • Sixth Product Image
Notes:Gartner® and Peer Insights™ are trademarks of Gartner, Inc. and/or its affiliates. All rights reserved. Gartner Peer Insights content consists of the opinions of individual end users based on their own experiences, and should not be construed as statements of fact, nor do they represent the views of Gartner or its affiliates. Gartner does not endorse any vendor, product or service depicted in this content nor makes any warranties, expressed or implied, with respect to this content, about its accuracy or completeness, including any warranties of merchantability or fitness for a particular purpose.Performance figures are obtained through internal testing by Synology. Actual performance may vary depending on the testing environment, usage, and configuration. See performance charts for more information.RS2423RP+ supports up to 24 drives with the addition of a Synology RX1223RP expansion unit, sold separately.SSD cache can be enabled using SNV3400/SNV3500 NVMe SSDs along with an M2D20 or E10M20-T1 adapter card, or by using a compatible 2.5" SATA SSD. All add-ons are sold separately.For the most up-to-date list of compatible NICs, please check our compatibility list.C2 Storage for Hyper Backup and Hybrid Share requires purchase of an eligible annual or monthly subscription. A free trial is available for each newly registered device.Surveillance Station includes 2 free licenses. Connecting more cameras and devices requires additional licenses. Learn more Check the compatibility list for supported drives.The warranty period starts from the date of purchase as stated on your purchase receipt. Visit https://www.synology.com/company/legal/warranty for more information.
Hardware Specifications
CPU
CPU
 CPU Model AMD Ryzen V1780B
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine
Memory
Memory
 System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage
Storage
 Drive Bays 12
Maximum Drive Bays with Expansion Unit 24 (RX1223RP x 1)
Drive Type (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive*
Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports
External Ports
 RJ-45 1GbE LAN Port 2
RJ-45 10GbE LAN Port 1
USB 3.2 Gen 1 Port 2
Expansion Port 1
Expansion Port Type Mini-SAS HD
Notes MTU value of 1GbE LAN port has a limit of 1500.
PCIe
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Appearance
Appearance
 Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 578 mm
Weight 11.9 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others
Others
 System Fan 60 mm x 60 mm x 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 56.2 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 350 watts
Redundant Power Supply
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 114.86 watts (Access)
42.33 watts (HDD Hibernation)
British Thermal Unit 392.18 BTU/hr (Access)
144.53 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH
Certification
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
Warranty
Warranty
 3-year hardware warranty, extendable to 5 years with EW202
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. (Learn more)
Environment
Environment
 RoHS Compliant
Packaging Content
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Optional Accessories
Notes
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
  • Certain items may not be available in your location. Please contact your local distributors for more information.
Notes: Model specifications are subject to change without prior notice. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
