E10G30-T1

E10G30-T1

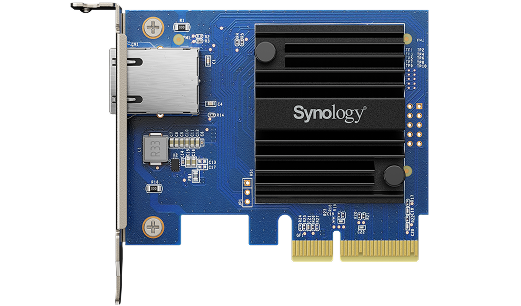

Single-port 10GbE 10GBASE-T add-in card for Synology systems

Gambar Produk E10G30_T1
Gambar Produk E10G30_T1
Reliable 10GbE connectivity for SMBsDownload Datasheet ThroughputIncrease network performance with 10GbE connectivityFlexibilityEasy integration into existing deploymentsCompatibilityDesigned for maximum performance and reliability in Synology systems
Boost throughput within minutes Seamless integrationStandard RJ45 connectivity ensures backward compatibility with existing networks and supports gradual expansion.CPU offloading and load balancingCPU offloading and load balancing technologies enhance system performance by reducing CPU workload and minimizing network latency.
5-year warrantyAt Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.Learn more Reliable storage systems
RackStation
RS1221(RP)+
  • Quad-core 2.2 GHz CPU
  • Scale up to 12 drives
  • Optional 10GbE support
 Learn more
RackStation
RS822(RP)+
  • Over 2103/1074 MB/s sequential read/write
  • 2 GB DDR4 ECC (max. 32 GB)
  • Built-in 4 x 1GbE ports with 10/25 GbE expansion option
 Learn more
DiskStation
DS1825+
  • 2 x 2.5GbE RJ-45 ports, optional 10/25GbE
  • Built-in M.2 NVMe slots for SSD cache
  • Scales up to 18 drives
 Learn more Notes:Requires DSM 7.1.1-42962 Update 5 or above. For additional compatibility information, please see our compatibility list.The warranty period starts from the date of purchase as stated on your purchase receipt. Visit https://www.synology.com/company/legal/warranty for more information.
Hardware Specifications
General
General
 Host Bus Interface PCIe 3.0 x4
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 68.1 mm x 82 mm x 13 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Network
Network
 IEEE Specification Compliance
  • IEEE 802.3x Flow Control
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
  • IEEE 802.3an 10Gbps Ethernet
Data Transfer Rates 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps
Supported Features
  • 9 KB Jumbo Frame
  • TCP/UDP/IP Checksum Offloading
  • Receive Side Scaling (RSS)
  • Generic Receive Offload (GRO)
Compatibility
Applied Models
Applied Models
  • FS series:FS6400, FS2500
  • HD series:HD6500
  • SA series:SA6400
  • 25 series:RS2825RP+, DS1825+
  • 23 series:RS2423RP+, RS2423+, DS1823xs+
  • 22 series:RS822RP+, RS822+, DS2422+
  • 21 series:RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621+
  • 20 series:RS820RP+, RS820+
  • 19 series:DS2419+II, DS2419+, DS1819+
  • 18 series:RS2818RP+, RS2418RP+, RS2418+
Notes DSM version requirement: 7.1.1-42962 Update 5 or later version
Notes: Model specifications are subject to change without prior notice. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
