Reliable, high availability SAN

Two independent controllers in the Synology UC3200 SAN work simultaneously to ensure interruption-free iSCSI and FC services.

Download Datasheet

Easily scalable

High-performance SAS drives slots and support for up to 576 TB, fully expanded, ensures the UC3200 is ready for any project. For mission-critical and sensitive data, native support for SEDs provides hardware-level encryption for all data.

product UC3200 back view photo
product UC3200 back view photo - highlight redundant
product UC3200 back view photo - highlight dual
product UC3200 back view photo - highlight pcie
product UC3200 back view photo - highlight gbe
product UC3200 back view photo - highlight port

Redundant power supply

Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.

Active-active controller module

Dual controller modules work simultaneously to provide high performance and uninterrupted FC and SAN services.

PCIe expansion options

Boost network bandwidth with 10/25 Gb Ethernet cards or 8/16 Gb Fibre Channel host bus adapters.

2 x 1GbE & 1 x 10GbE

Onboard RJ45 interfaces of 1GbE and 10GbE with the Link Aggregation support.

Mini-SAS HD port

Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.

  • product UC3200 back view photo - highlight redundant

    Redundant power supply

    Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.

  • product UC3200 back view photo - highlight dual

    Active-active controller module

    Dual controller modules work simultaneously to provide high performance and uninterrupted FC and SAN services.

  • product UC3200 back view photo - highlight pcie

    PCIe expansion options

    Boost network bandwidth with 10/25 Gb Ethernet cards or 8/16 Gb Fibre Channel host bus adapters.

  • product UC3200 back view photo - highlight gbe

    2 x 1GbE & 1 x 10GbE

    Onboard RJ45 interfaces of 1GbE and 10GbE with the Link Aggregation support.

  • product UC3200 back view photo - highlight port

    Mini-SAS HD port

    Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.

UC3200 dual
Performance
Scalable memory
Cooling
Independent system architecture
Non-Transparent Bridge (NTB)

Performance

A quad-core Intel® Xeon® processor powers each controller for enhanced reliability and performance of up to 140,000 4K random write IOPs.

Scalable memory

Each controller board features four DDR4 ECC UDIMM slots for expandability and improved system performance.

Cooling

Modularized fans with redundancy regulate system temperatures and are easy to service and replace.

Independent system architecture

The management operating system, DSM UC, is stored on a separate SATA DOM drive on each controller.

Non-Transparent Bridge (NTB)

System memory is synchronized between controllers using a high-speed interface to maximize the protection of in-flight data.

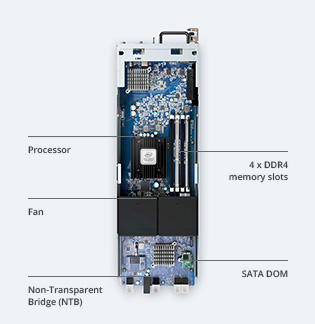

dual_rwd parts image dual_rwd parts image

Performance

A quad-core Intel® Xeon® processor powers each controller for enhanced reliability and performance of up to 140,000 4K random write IOPs.

Scalable memory

Each controller board features four DDR4 ECC UDIMM slots for expandability and improved system performance.

Cooling

Modularized fans with redundancy regulate system temperatures and are easy to service and replace.

Independent system architecture

The management operating system, DSM UC, is stored on a separate SATA DOM drive on each controller.

Non-Transparent Bridge (NTB)

System memory is synchronized between controllers using a high-speed interface to maximize the protection of in-flight data.

Works with mainstream virtualization systems

Optimized for virtualization environments.

  • Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency.
  • Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
  • Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder.
  • Compliance with the ALUA industry standard allows hosts to identify optimized paths to increase data transfer performance and efficiency.

Learn more about Storage for Virtualization

vmware windows2016 citrix openstack

Engineered for iSCSI/FC SAN

DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.

Engineered for iSCSI/FC SAN

A unified interface for intuitive management

Cutting-edge LUN features

Advanced LUN functionality significantly improves VM performance and offers lightning-fast snapshot creation, recovery, and cloning, as well as VMware VAAI and Windows ODX support.

Intuitive management

A streamlined management interface makes connection and permission management exceptionally easy, even in large-scale SAN environments.

For large and small deployments

Support for iSCSI as well as Fibre Channel means that Synology storage systems integrate as easily in smaller setups as in enterprise environments.

A unified interface for intuitive management

Disaster-proof your critical data

Leverage application-aware snapshot protection and instant recovery of virtual machines on LUNs in case of disaster. Snapshot Replication (enabled by the Btrfs file system) offers schedulable and near-instantaneous data protection, while UC3200 supports up to 4,096 system-wide snapshots of local volumes or off-site servers.

Schedulable, near-instantaneous data protection

Schedulable, near-instantaneous data protection

Supports up to 4,096 system-wide snapshots

Supports up to 4,096 system-wide snapshots

Instant recovery of virtual machines

Instant recovery of virtual machines

More resources

Administrator’s Guide

Administrator’s Guide

This guide will walk you through the process of the initial setup and optimal deployment of UC3200.

Learn more
Tutorials & FAQ

Tutorials & FAQ

We offer a variety of tutorial and troubleshooting articles for UC3200 on our tutorials & FAQ page.

Learn more
Contact Us

Contact Us

Reach out to us whenever you have questions regarding Synology UC3200. Our experts will resolve your problems in no time.

Contact Us

Unified Controller UC3200

product UC3200 front view photo
product UC3200 back view photo
  • 1 Power button and indicator
  • 2 Beep off button
  • 3 Drive tray
  • 4 Drive status indicator
  • 5 Power port
  • 6 PSU indicator and beep off button
  • 7 PSU fan
  • 8 PCIe expansion slot
  • 9 Console port
  • 10 1GbE RJ-45 port
  • 11 10GbE RJ-45 (10GBASE-T) port
  • 12 Expansion port
  • 13 Reset button
  • 14 Power Indicator
  • 15 Status Indicator
  • 16 Alert Indicator
  • 17 Remove Indicator
Hardware Specifications
Controller
Controller
Number of Controller Module 2
CPU
CPU
CPU Model Intel Xeon D-1521
CPU Quantity 1 (per controller)
CPU Architecture 64-bit
CPU Frequency 4-core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
Memory
System Memory 8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed 8 GB (8 GB x 1) (per controller)
Total Memory Slots 4 (per controller)
Maximum Memory Capacity 64 GB (16 GB x 4) (per controller)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
Storage
Drive Bays 12
Maximum Drive Bays with Expansion Unit 36 (RXD1219sas x 2)
Compatible Drive Type* (See all supported drives)
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
Maximum Single Volume Size* 108 TB
Hot Swappable Drive
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.
External Ports
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support) (per controller)
RJ-45 10GbE LAN Port 1 (per controller)
PCIe
PCIe
PCIe Expansion 1 x Gen3 x8 slot (x8 link) (per controller)
File System
File System
Internal Drives Btrfs
Appearance
Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm
Weight 19.7 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others
Others
System Fan 60 mm x 60 mm x 2 (per controller)
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 51.3 dB(A)
Power Supply Unit / Adapter 500W
Redundant Power Supply
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60Hz, Single Phase
Power Consumption* 417.48 W (Access)
British Thermal Unit 1425.45 BTU/hr (Access)
Notes
  • Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
Certification
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty
Warranty
5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
Environment
RoHS Compliant
Packaging Content
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Optional Accessories
Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
DSM UC Specifications
Storage Management
Storage Management
Maximum Internal Volume Number 32
Maximum iSCSI Target Number 128
Maximum LUN 128
Advanced LUN (Clone/Snapshot) Support
Maximum Number of Snapshots per Advanced LUN 256
SSD Read / Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • JBOD
  • RAID F1
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Account & Shared Folder
Account & Shared Folder
Maximum Local User Accounts 65
Virtualization
Virtualization
VMware vSphere with VAAI
Windows Server 2016
Windows Server 2019
Citrix Ready
OpenStack
Snapshot Replication
Snapshot Replication
Maximum Number of Replication 32
Maximum of System Snapshots 4,096
General Specifications
General Specifications
Networking Protocols
  • iSCSI
  • Telnet
  • SSH
  • SNMP
  • Fibre Channel
Supported Clients
  • Windows Server 2008 onwards
  • VMware 5 onward
  • Oracle Solaris 10 onward
  • Citrix XenServer 7.2 onward
  • SUSE Linux ES 11 onward
  • Red Hat ES 6.10 onward
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
