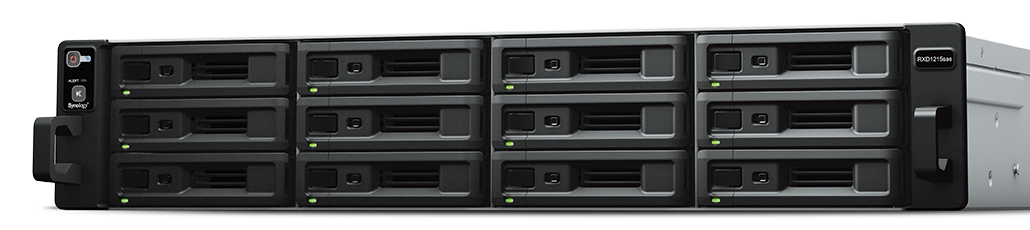

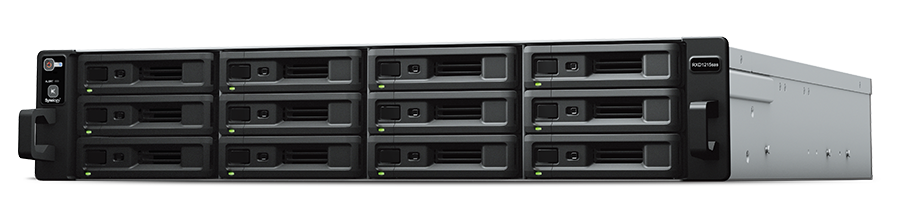

Expansion Unit RXD1215sas

Expansion Unit RXD1215sas

Reliable, scalable SAS storage expansion unit

Massive scalability up to 180 drives

Up to fifteen RXD1215sas can be connected to the dual RC18015xs+ computing nodes1, accommodating massive scalability up to 180 drives and maximum raw storage beyond 1PB2. The shared storage architecture eliminates the need for data replication over the network, in addition to drastically reducing deployment costs.

Hardware redundancy enhances system uptime

RXD1215sas is equipped with redundant hardware components, such as power supply units, SAS modules, and system cooling fans. In the event of component failure, the system continues operating normally while replacement parts are obtained and installed.

Notes:

  1. Two RC18015xs+ and at least one RXD1215sas expansion unit are required to configure and operate. Additional RXD1215sas Expansion Units can be purchased separately.
  2. Raw storage capacity varies depending on hard drive model and individual settings. Hard drives are purchased separately. Learn more about the compatibility of hard drives, please click here.
Hardware Specifications
Applied Models RC18015xs+
Storage
Drive Bays 12
Compatible Drive Type* (See all supported drives)
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
Maximum Internal Raw Capacity 120 TB (10 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
SAS IN-port 2
SAS OUT-port 2
Appearance
Size (Height x Width x Depth) 88 mm x 430 mm x 692 mm
Weight 18 kg
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 2 X 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 248 W (Access)
British Thermal Unit 846.21 BTU/hr (Access)
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
System Fan 60 mm x 60 mm x 4 pcs
Easy Replacement System Fan
Noise Level* 48 dB(A)
Certification
  • FCC Class A
  • CE Class A
  • BSMI Class A
Warranty 5 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Expansion Cable: MiniSAS X 2
  • Quick Installation Guide X 1
Optional Accessories Synology RKS1317 - Rail Kit Sliding
