Uncompromising performance
Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.
FlashStation
FS6400
FlashStation FS6400
Blazingly-fast all-flash server aiming for I/O-intensive applications
CPU
Dual Intel® Xeon® Silver 8-core with NUMA
Memory
DDR4 ECC RDIMM, up to 512GB
High Performance
Over 240,000 iSCSI 4K random write IOPS
Scalability
Up to 72 drives with FX24211
Fast and reliable networking
With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager. Learn more
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity. Learn more
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
See the white paper for more technical details regarding RAID F1

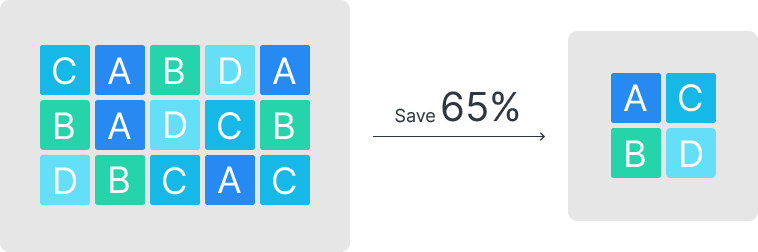

Flash volume deduplication
Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.2
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes. Learn more
Security Advisor
Analyze system settings, password strength and network preferences, and remove any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to avoid unauthorized data access.
2-step verification
Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.
Powered by Synology DiskStation Manager
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Synology Office
Collaborate on documents, spreadsheets, and slides in real time to boost team productivity.
Synology MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Snapshot Replication
Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for quick disaster recovery.
Performance backed by Synology drives
Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.3
FlashStation FS6400
- 1Power button and indicator
- 2Beep off button
- 3Drive tray
- 4Drive status indicator
- 5PSU fan
- 6Power port
- 7PSU indicator
- 8Console port
- 9Reset button
- 101GbE RJ-45 port
- 1110GbE RJ-45 (10GBASE-T) port
- 12USB 3.0 port
- 13PCIe expansion slot
- 14Expansion port
Notes:
- FS6400 supports up to two optional expansion units, which can be either two identical RX1217sas/FX2421 or one of each.
Flash volume deduplication is available on flash-only volumes comprised of compatible Synology SSD. Synology measured a data reduction ratio of over 3.15:1 based on 10 VMs configured for remote desktop with two operating systems and enterprise applications installed.
Storage drives are sold separately. Refer to the compatibility list for compatible devices.
Hardware Specifications |
||
|---|---|---|
CPU |
||
|
CPU
|
CPU Model | Intel Xeon Silver 4110 |
| CPU Quantity | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 8-core 2.1 (base) / 3.0 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
Memory |
||
|
Memory
|
System Memory | 32 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 32 GB (16 GB x 2) | |
| Total Memory Slots | 16 | |
| Maximum Memory Capacity | 512 GB (32 GB x 16) | |
| Notes |
|
|
Storage |
||
|
Storage
|
Drive Bays | 24 |
| Maximum Drive Bays with Expansion Unit | 48 (RX1217sas x 2) / 72 (FX2421* x 2) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
External Ports |
||
|
External Ports
|
RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 1 | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
PCIe |
||
|
PCIe
|
PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
File System |
||
|
File System
|
Internal Drives |
|
| External Drives |
|
|
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
Appearance |
||
|
Appearance
|
Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 17.26 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
Others |
||
|
Others
|
System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 53.7 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 800 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption |
288.49 W (Access) 145.8 W (HDD Hibernation) |
|
| British Thermal Unit |
984.37 BTU/hr (Access) 497.49 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
Temperature |
||
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
||
|
Certification
|
|
|
Warranty |
||
|
Warranty
|
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment |
||
|
Environment
|
RoHS Compliant | |
Packaging Content |
||
|
Packaging Content
|
|
|
Optional Accessories |
||
|
Optional Accessories
|
|
|
| Notes |
|
|
DSM Specifications |
||
|---|---|---|
| Maximum Single Volume Size* |
|
|
| Maximum Internal Volume Number | 256 | |
| SSD Read / Write Cache (White Paper) | ||
| SSD TRIM | ||
| RAID Group | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|
| Notes |
|
|
| File Protocol | SMB/AFP/NFS/FTP/WebDAV | |
| Maximum Concurrent SMB/AFP/FTP Connections | 8,000 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 10,000 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes |
|
|
| Maximum Local User Accounts | 16,000 | |
| Maximum Local Groups | 512 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 32 | |
| Maximum Hybrid Share Folders | 30 | |
| Folder and Package Backup | ||
| Entire System Backup | ||
| Notes | Full-system backup requires DSM 7.2 or later. | |
| Synology High Availability | ||
| Syslog Events per Second | 3,000 | |
Virtualization |
||
|
Virtualization
|
VMware ESXi 6.5 and VAAI | |
| Windows Server 2016 | ||
| Windows Server 2019 | ||
| Windows Server 2022 | ||
| Citrix Ready | ||
| OpenStack | ||
| Networking Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
|
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | |
Add-on Packages view the complete package list |
||
Antivirus by McAfee (Trial) |
||
|
Antivirus by McAfee (Trial)
|
||
| Maximum Users | 6,000 | |
| Maximum Number of Concurrent Users | 1,500 | |
| Notes | When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections. | |
Document Viewer |
||
|
Document Viewer
|
||
| Maximum iSCSI Target Number | 256 | |
| Maximum LUN | 512 | |
| LUN Clone/Snapshot, Windows ODX | ||
| Notes | iSCSI Manager has been renamed to SAN Manager in DSM 7.0. | |
| Free Email Accounts | 5 (Licenses required for additional accounts) | |
| Maximum Number of Concurrent Users | 2,200 | |
| Maximum Server Performance | 5,721,000 emails per day, approx. 174GB | |
| Notes |
|
|
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Maximum IP cam (Licenses required) | 150 (including 2 Free License) (see all supported IP cameras) | |
| Total FPS (H.264) |
4500 FPS @ 720p (1280x720) 4500 FPS @ 1080p (1920x1080) 4500 FPS @ 3M (2048x1536) 3300 FPS @ 5M (2591x1944) 2100 FPS @ 4K (3840x2160) |
|
| Total FPS (H.265) |
4500 FPS @ 720p (1280x720) 4500 FPS @ 1080p (1920x1080) 4500 FPS @ 3M (2048x1536) 4500 FPS @ 5M (2591x1944) 4500 FPS @ 4K (3840x2160) |
|
| Notes |
|
|
| Recommended Number of Concurrent Sync Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 100,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
|
|
| Maximum Users | 3,400 | |
| Notes |
|
|
| Recommended Virtual Machine Instances | 32 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 32 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| Maximum Connections | 60 | |
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
