E10G21-F2

E10G21-F2

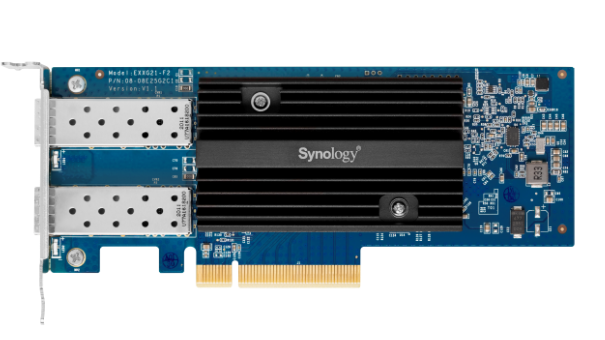

Dual-port 10GbE SFP+ add-in card for Synology servers

Boost Connectivity for Bandwidth-Heavy Workloads

The Synology E10G21-F2 is a dual-port 10GbE SFP+ network interface card that lets you boost network bandwidth and performance. Handle more operations, users, and high-resolution videos.

Throughput

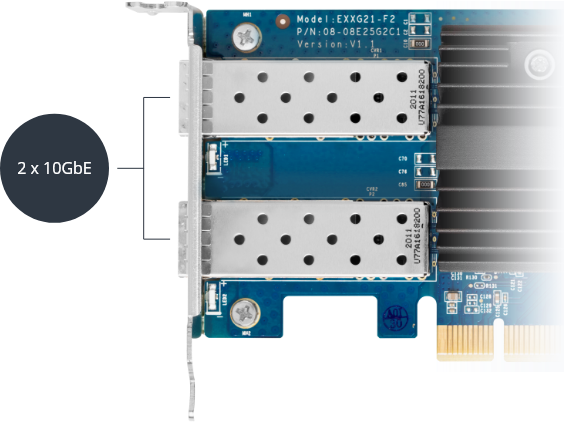

Dual-port 10GbE SFP+

Flexibility

Optical SR, Optical LR, and DAC support

Compatibility

Purpose-built for Synology servers

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

High performance storage systems

DiskStation

DS1621xs+

  • Quad-core 2.2 GHz CPU
  • Onboard 10GbE/M.2 NVMe SSD cache slots
  • Scale up to 16 drives
DiskStation

DS1821+

  • Quad-core 2.2 GHz CPU
  • M.2 NVMe SSD cache support
  • Scales up to 18 drives
DiskStation

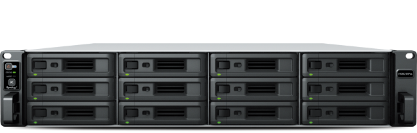

RS3621RPxs

  • Intel® Xeon® 6-core processor
  • Dual PCIe slots
  • Redundant power

Hardware Specifications

General

General

Host Bus Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 69 mm x 168 mm x 17.3 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Notes
  • Supports PCIe upconfigure to reduce link width to conserve power.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Network

Network

IEEE Specification Compliance
  • IEEE 802.3ad Link Aggregation
  • IEEE 802.3ae 10Gbps Ethernet
Data Transfer Rates 10 Gbps
Supported Features
  • TCP Segmentation Offload (TSO)
  • Large Send Offload (LSO)
  • Receive Side Scaling (RSS)
  • Generic Receive Offload (GRO)
  • Generic Segmentation Offload (GSO)
  • 1.5 - 9 KB Jumbo Frame
  • Offloaded storage over Ethernet
  • Non-offloaded storage over Ethernet
  • TCP/UDP Checksum Offload
  • Transmit side scaling (TSS)

Compatibility

Applied Models

Applied Models

  • FS series:FS6400, FS3600, FS3400, FS3017, FS2017, FS1018
  • SA series:SA3600, SA3400, SA3200D
  • UC series:UC3200
  • 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
  • 20 series:RS820RP+, RS820+
  • 19 series:RS1619xs+, DS2419+, DS1819+
  • 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+
  • 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs
Notes DSM version requirement: 6.2.3-25426 or later version

Notes:

  • Model specifications are subject to change without prior notice.
  • The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  • The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  • If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
